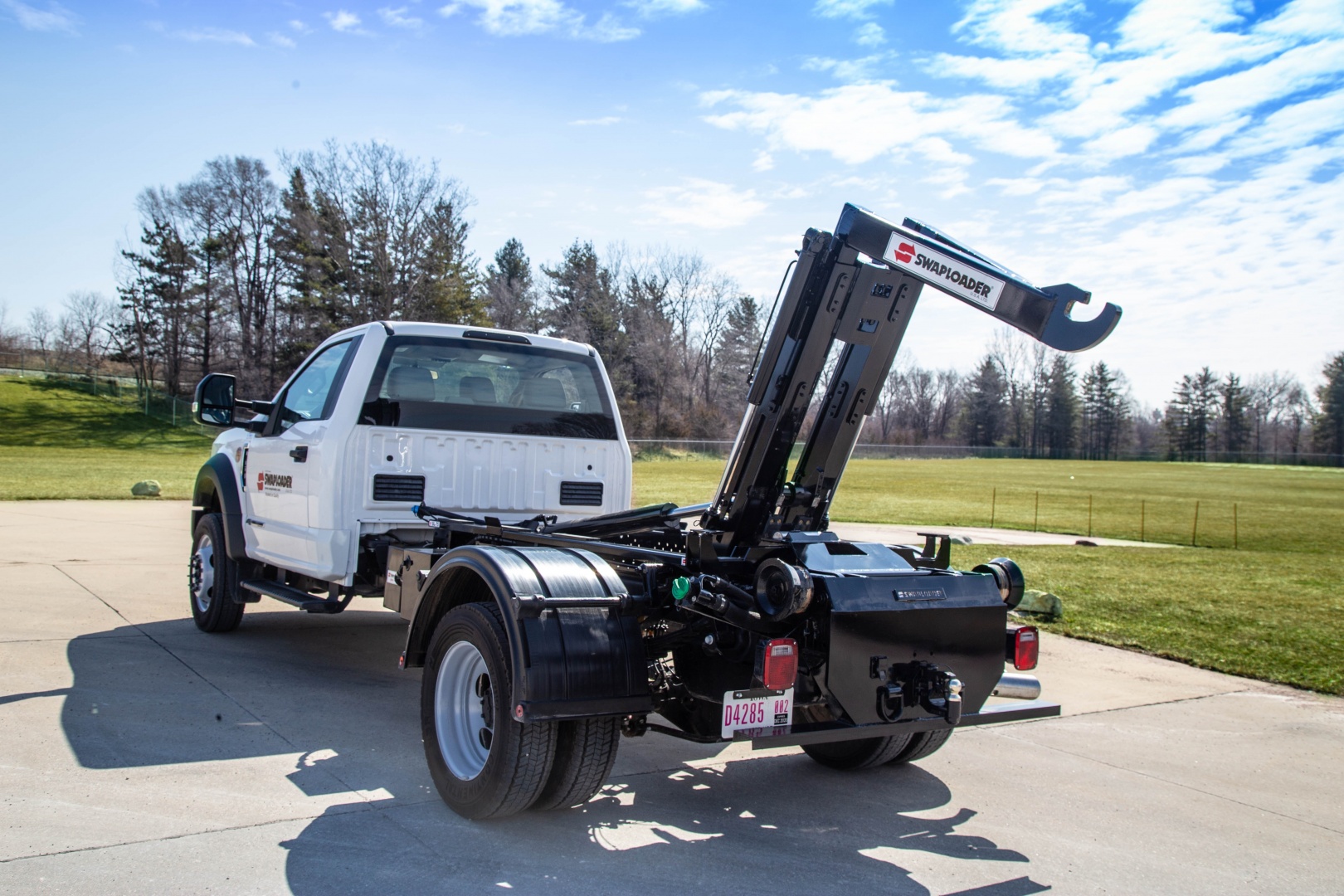

The NEW SL-75 Designed for the class 4 conventional & cab-over truck market

Features Include:

  • 7,500 lb dump/lift capacity
  • Fixed 35-5/8″ hook height
  • Optimum body lengths 10’–12′

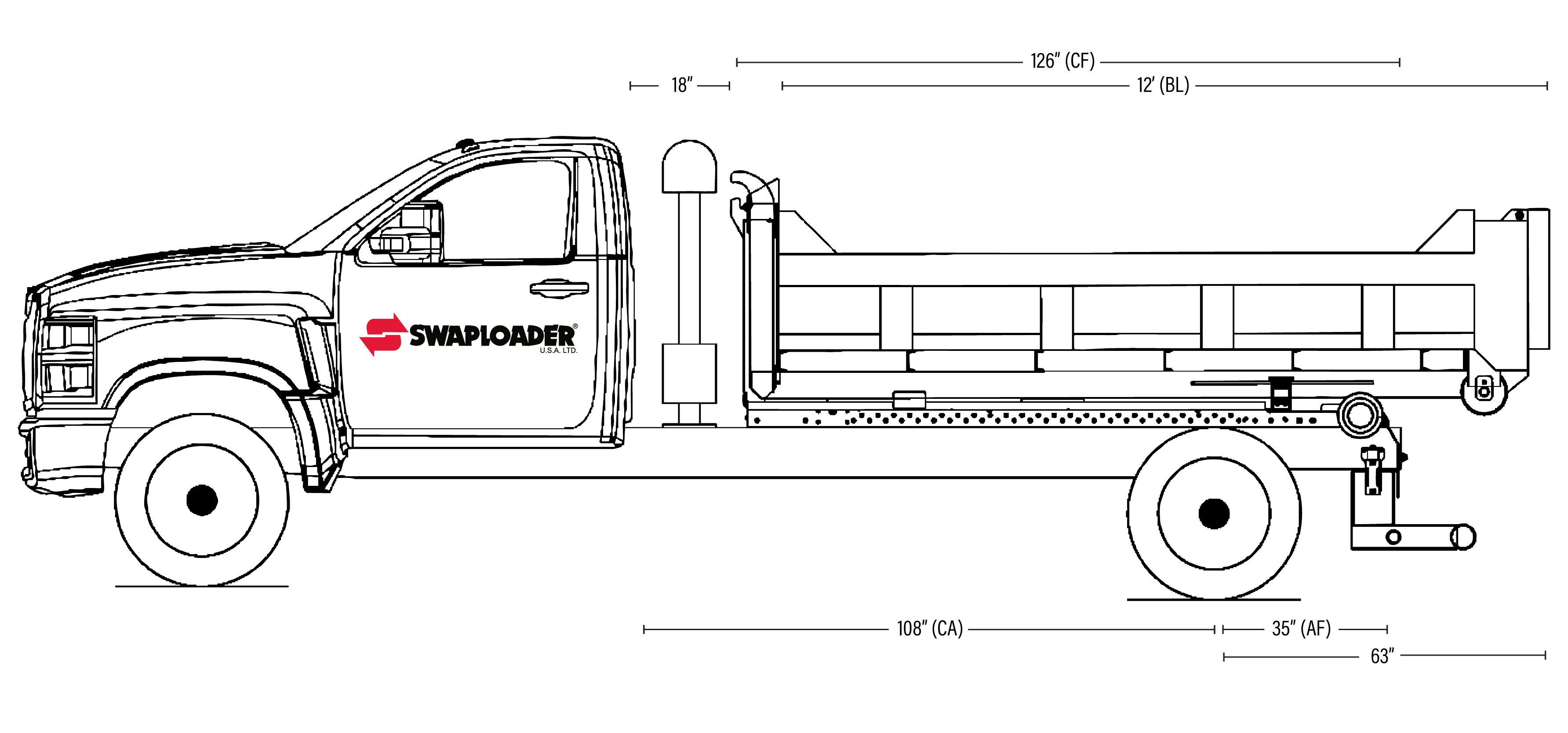

  • Cab to axle: 84″– 96″
  • 3,250 Psi operating pressure
  • Single lift cylinder
  • Lift booster
  • Dual jib cylinders
  • Accommodates down to 4″ sub-frame heights
  • Sub-frame widths from 41 5/8″ to 39″
  • Shelf assembly allows for 9′ containers/bodies
  • Maintenance-free jib lock-out switch
  • Bolt-on installation brackets

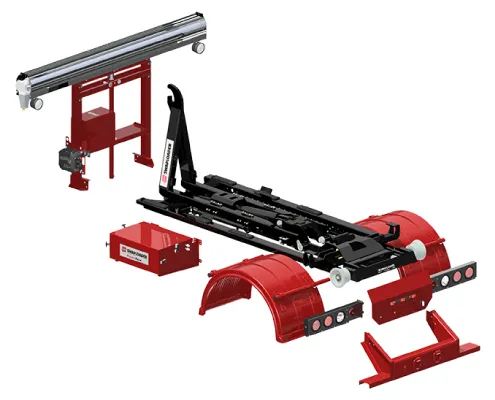

Hydraulic Options:

  • SwapLoader Power Pack
  • Electric Over Hydraulic Valve (EHV)

Designed for the Class 4 Conventional & Cab-over Truck Market – The NEW SL-75
