Heavy Duty Series Hook Lifts - SwapLoader USA, Ltd.

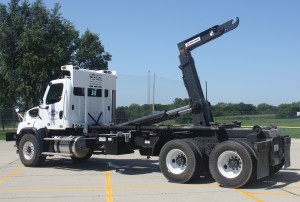

SL-518 (54,000 lb. Capacity) Hook Lift

Recommended CT: 174″
GVW Range: 50,000 lb. or Greater
Required Clear Frame (useable) Rail: 225″
Chassis Frame Height: Up to 45″
Optimum Body Lengths: 18′ – 20′
Potential Body Length: 17′ – 22′
Hook Height: Fixed 61 3/4″, Adjustable 61 3/4″ or 53 7/8″
Flow @ Pump RPM: 26 GPM @ 1,500 RPM
PSI: 3,500
Extras: SL-518 Bid Specs & SL-518 Manual & Adjustable Jib Instructions
All-Model Specs Sheet (view), All-Model Specs Sheet (print)

SL-520 280X200

SL-520X (50,000 lb. Capacity) Hook Lift

Recommended CT: 190″
GVW Range: 50,000 lb. or Greater
Required Clear Frame (useable) Rail: 245″
Chassis Frame Height: Up to 45″
Optimum Body Lengths: 20′ – 22′
Potential Body Length: 19′ – 24′
Hook Height: Fixed 61 3/4″, Adjustable 61 3/4″ or 53 7/8″
Flow @ Pump RPM: 21 GPM @ 1,300 RPM
PSI: 4,650
Extras: SL-520X Bid Specs & SL-520X Manual & Hoist Details
All-Model Specs Sheet (view), All-Model Specs Sheet (print)

sl650

SL-650 (65,000 lb. Capacity) Hook Lift

Recommended CT: 190″
GVW Range: 55,000 lb. or Greater
Required Clear Frame (useable) Rail: 249″
Chassis Frame Height: Up to 45″
Optimum Body Lengths: 20′ – 22′
Potential Body Length: 20′ – 24′
Hook Height: Fixed 62″
Flow @ Pump RPM: 26 GPM @ 1,500 RPM
PSI: 3,500
Extras: SL-650 Bid Specs & SL-650 Manual
All-Model Specs Sheet (view), All-Model Specs Sheet (print)
